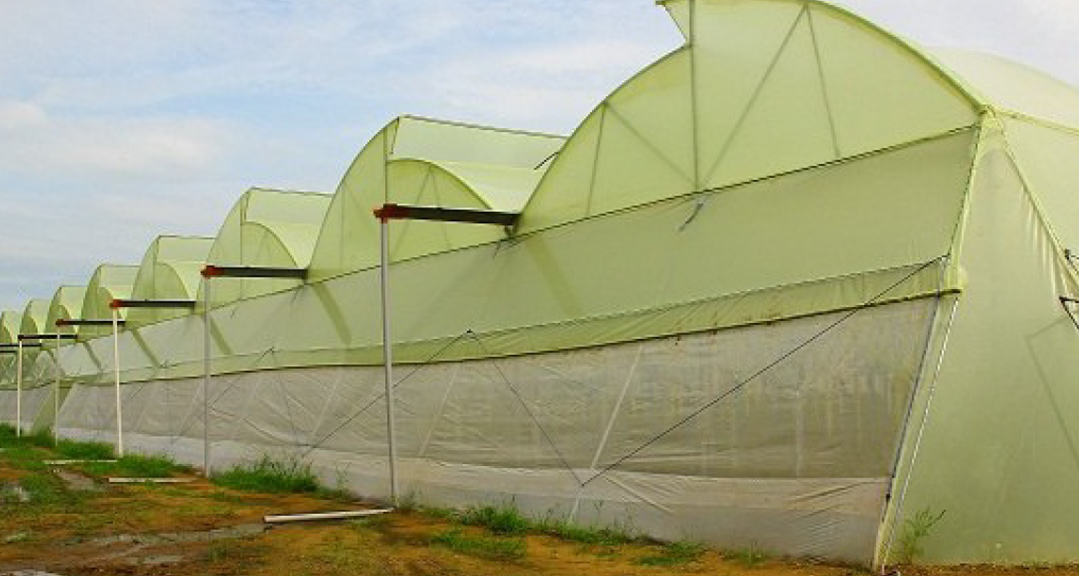

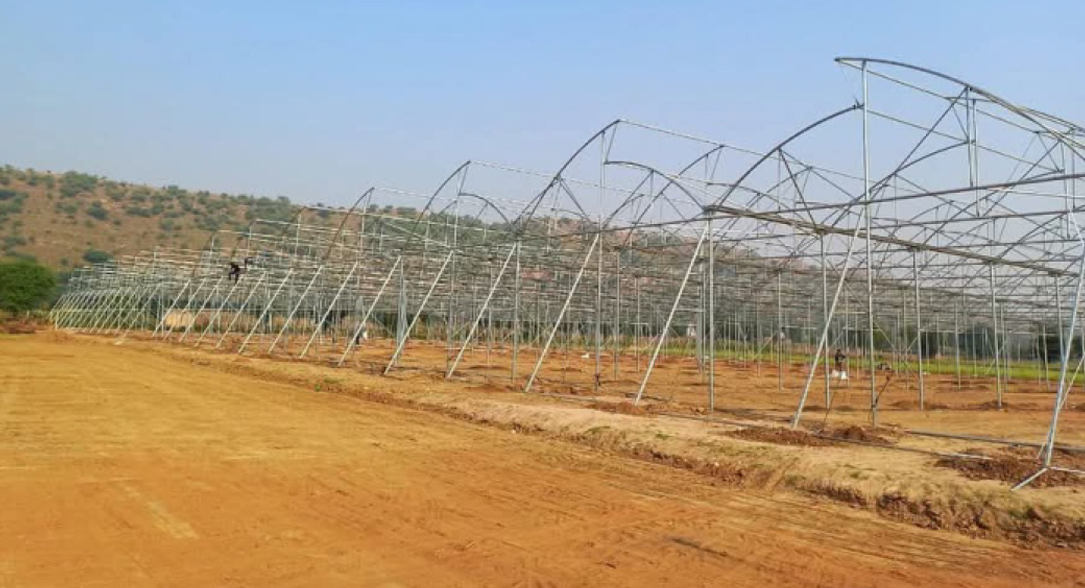

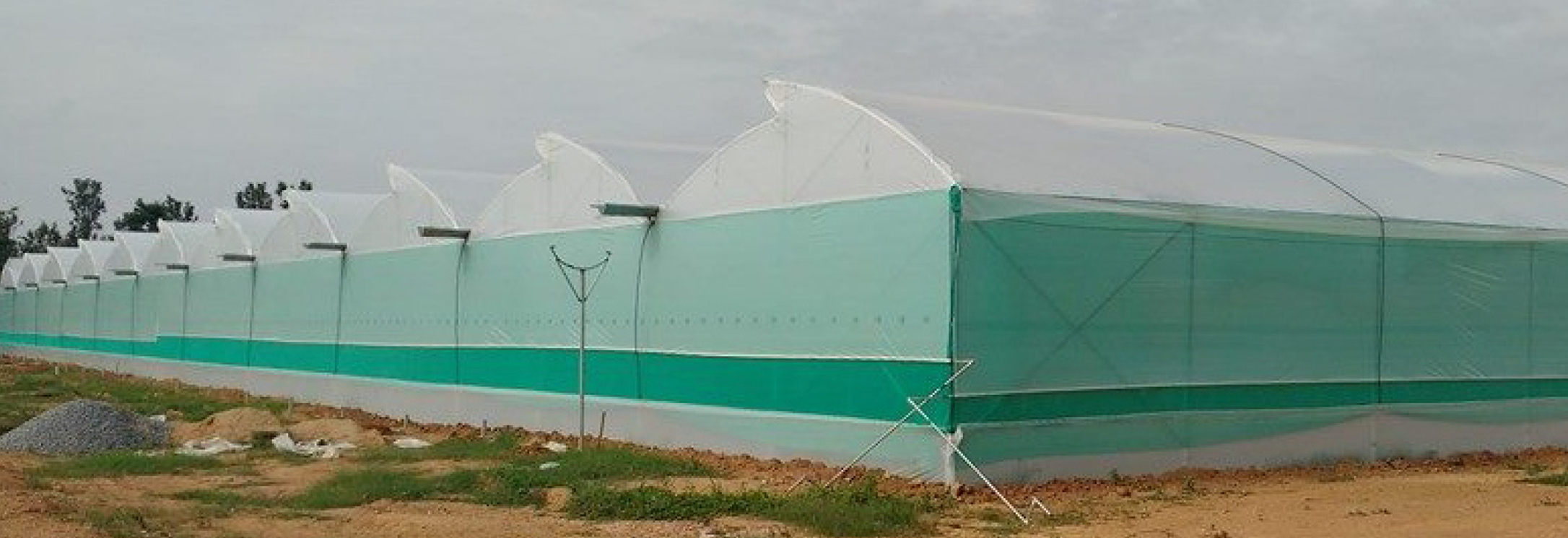

Naturally Ventilated Polyhouse is a framed structure made of pipes and covered with poly film material fixed to the frame with grippers. Inside structure is installed with micro irrigation system and fogging system for controlled irrigation, fertigation, temperature and humidity. Side wall curtain for controlling co2 inside the structure for easy photosynthesis activity in plant. Covered poly film filtered UV light and diffused sun light surrounding greenhouse structure etc.
Structure Parameter
SPAN
8.0 MTR
BAY
4.0 MTR
SIDE/GUTTER HEIGHT
4.0 MTR TO 4.5 MTR
TOP HEIGHT
6.5 MTR TO 7.5 MTR
SIDE VENT
2.5 MTR TO 3.0 MTR
TOP VENT
0.8 MTR TO 1.0 MTR
CANOPY/HOCKEY AREA
2.0 MTR TO 2.5 MTR
TOTAL VENTILATION
UP TO 25%
Benefits
- Multiple higher production with best quality compared to open field crop cultivation
- Lower requirement of water, fertiliser and labour, reduction in cost of cultivation
- Protects against insect, pest and disease for good health of plants
- Protects against natural disaster like cyclone, flood and birds
- Cultivation in all types of land Any crop cultivation in all season for best rate in the market
