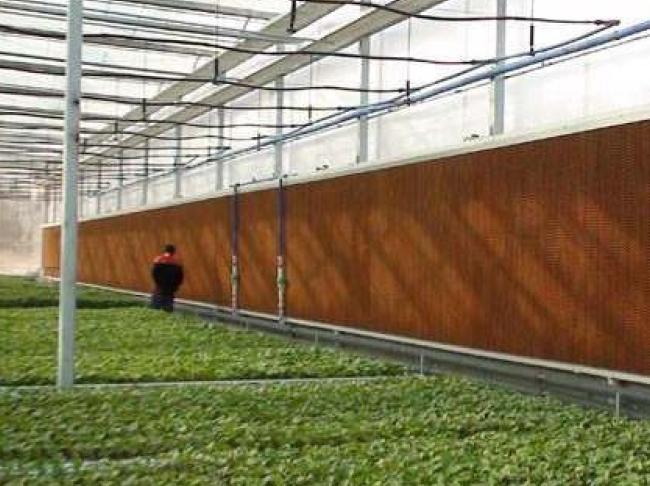

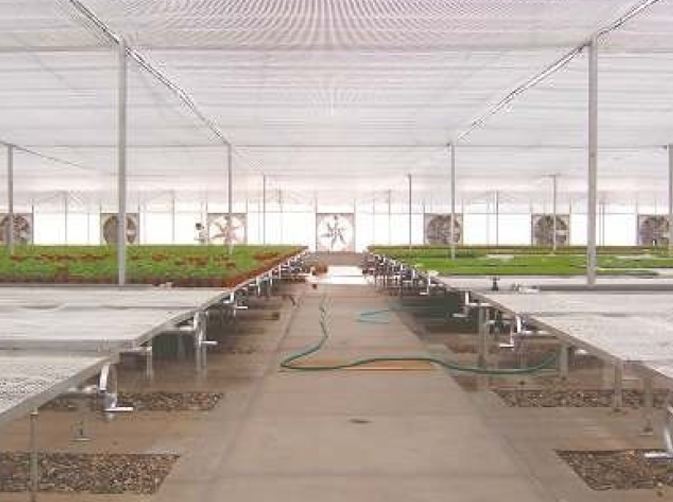

Fan & Pad Polyhouse is used to provide a controlled growing environment for growing speciality crops and plants. This polyhouse is provided with special purpose fans to draw air into polyhouse through high efficiency cooling pads made from high surface area ribbons of cellulose fibre. Humidity is controlled by an elaborate system of foggers. Fertigation is implemented by efficient drip irrigation system.
Structure Parameter
SPAN
8.0 MTR
BAY
4.0 MTR
SIDE HEIGHT
4.0 MTR
TOP HEIGHT
5.0 / 5.5 MTR
CANOPY / HOCKEY AREA
2.0 MTR TO 2.5 MTR
EXHAUST FAN
50”, 1400 RPM, 415V
COOLING PAD
1500MM X 1600MM X 100 MM
CONTROL PANEL
FOR TEMP. & HUMIDITY
Size :- 500m 1000m 2000m 4000m
Benefits
- Fully temperature and humidity controlled fan pad poly house is equipped by cooling system which control climatic conditions.
- Fan pad ploy house is very useful for cultivation high-tech high value crops and tissues culture labs.
- Increase efficiency of water supply, pesticides, manures and total control of climatic conditions.
- Rust proof and leakage proof structure.
- Unique structure of galvanize pipe, nut-bolt & gutters.
